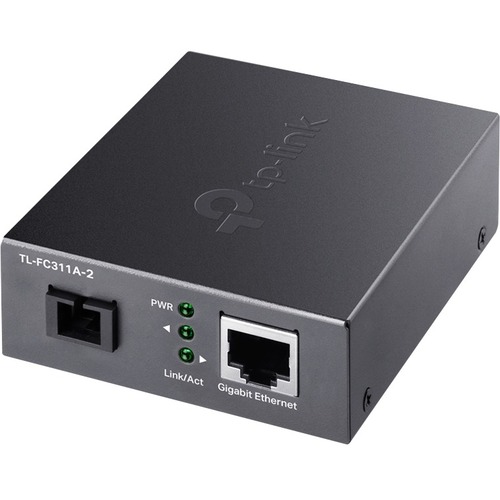

TP-Link TL-FC311A-2 - Gigabit WDM SFP to RJ45 Fiber Media Converter - Fiber to Ethernet Converter - 10/100/1000Mbps RJ45 Port to 1000Base-LX Single-Mode Fiber
Description
What This Product Does
TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as remote video surveillance system and wireless networking.
How This Product Works
TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only one single mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Specifications
43201553
0.8lb
2.5in
6.5in
8in
TP-Link
TP-Link
Transceivers/Media Converters
China
2.9"
Gigabit Ethernet
Single-Mode
9/125 µm
1310 nm
1.1"
TP-LINK Technologies Co., Ltd
1.24 Mile
Twisted Pair
Yes
1000Base-T
1
1
AC Adapter
Transceiver/Media Converter
2
3.7"
