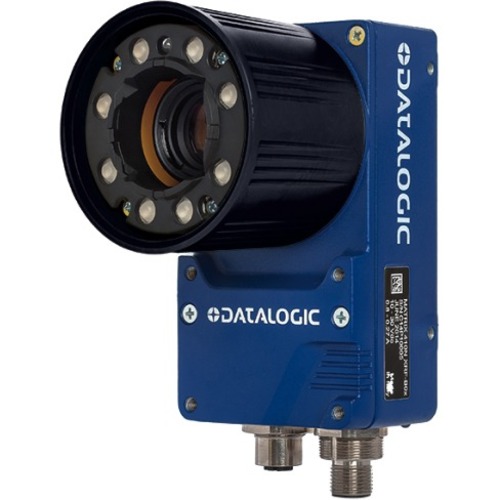

Datalogic Matrix 410N 700-010 Fixed Mount Barcode Scanner - 1D, 2D - CMOS
Description
The Matrix 410N™ offers multiple communication options for increase flexibility and cost-effectiveness. The industrial imager offers Ethernet connectivity embedded, including standard communication such as TCP/IP, HTTP, FTP, as well as common industrial fieldbus communication protocols, like PROFINET IO, EtherNet/IP, Modbus TCP/IP.
In addition to flexibility, Matrix 410N™ is equipped with features for increased ease of use and configurability, with the option for a single or multi-device layout for scanning over large areas or multiple signs.
Powered by DL.CODE, Matrix 410N™ software offers an easy-to-use graphical user interface, while supporting in-line monitoring functionality, including live image display, reading statistics and diagnostics. The Matrix 410N™ also has image saving capability for reading case review, such as no reads, storing up to 3,000 images either onboard or at an external FTP client.
The embedded laser aimer and the patented Green Spot - projected onto the scanning area - offers the user a quick scanning area determination and to easily acknowledge a reading without any external accessory or software.
Specifications
UNSPSC Code
43211701
Weight
0.22lb
Height
8in
Width
5in
Length
6in
Brand
Datalogic
Brand Name
Datalogic
Category
Barcode Scanners
Form Factor
Fixed Mount
Host Interface
Ethernet
Image Sensor Type
CMOS
Product Type
Barcode Scanner
Scanning Capability
2D
Weight (approximate)
1.06 lb
