StarTech.com 4-Port Dual-Monitor Dual-Link DVI KVM Switch with USB 3.0 Hub - 4 Computer(s) - 1 Local User(s) - 2560 x 1600 - 8 x USB - 10 x DVI - Desktop - TAA Compliant
- IMPROVE EFFICIENCY: Dual Monitor Dual Link DVI KVM Switch with hotkey and manual switching, to access 4 workstations or servers with USB and DVI video from a single keyboard, monitor, and mouse
- WORK SMARTER: Combines dual DVI displays and a high-speed 2-Port USB 3.0 hub to share USB devices between connected computers seamlessly; OS independent and works with video cards from NVIDIA and AMD
- TECH SPECS: 4 Port KVM
- Dual Screen
- DVI Dual Link
- 2048x1536 Analog
Product Details
General Information
| USB | Yes |
| Number of Computers Supported | 4 |
| Number of USB Ports | 8 |
| Number of Local Users Supported | 1 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| DVI-I ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
| Maximum digital resolution | 2560 x 1600 pixels |
| Maximum analog resolution | 2048 x 1536 pixels |
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Audio channels | 2.0 |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity |
| Hot keys | Yes |
| Certification | CE, FCC, TAA |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 9 V |
| Output current | 2 A |
| Power consumption (typical) | 18 W |
| Compatible power plug types | AU, EU, JP, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 100 mm |
| Depth | 253 mm |
| Height | 66 mm |
| Weight | 1.3 kg |
Product Information
| Brand | StarTech |
| Type | External Computer Cables |
Description
DVI KVM Switch | TAA Compliant | 2560 x 1600 Digital Resolution | Stereo Audio
This TAA compliant 4-port dual-monitor Dual-Link DVI USB KVM switch controls up to four PCs, each with two dual-link DVI video outputs. The switch also shares one microphone, one set of speakers, one keyboard and one mouse, across the four connected computers and features an additional built-in 2 port USB hub.
Increase Productivity
The KVM switch supports four separate multimedia computer systems and the use of a dual-link DVI dual-monitor workstation, increasing productivity by enabling you to access more information at the same time.
Integrated USB 3.0 Hub
The 2-port USB 3.0 hub built into the KVM switch lets you share two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected. With support for USB 3.0, you can achieve data transfer rates up to 5Gbps ensuring flawless performance from your USB peripherals - great for quickly transferring data to and from external USB 3.0 drives.
Full Multimedia Support
With support for separate stereo audio and microphones, the KVM switch box connects everything you need to your systems, saving you money and desk space.
Easy to Operate

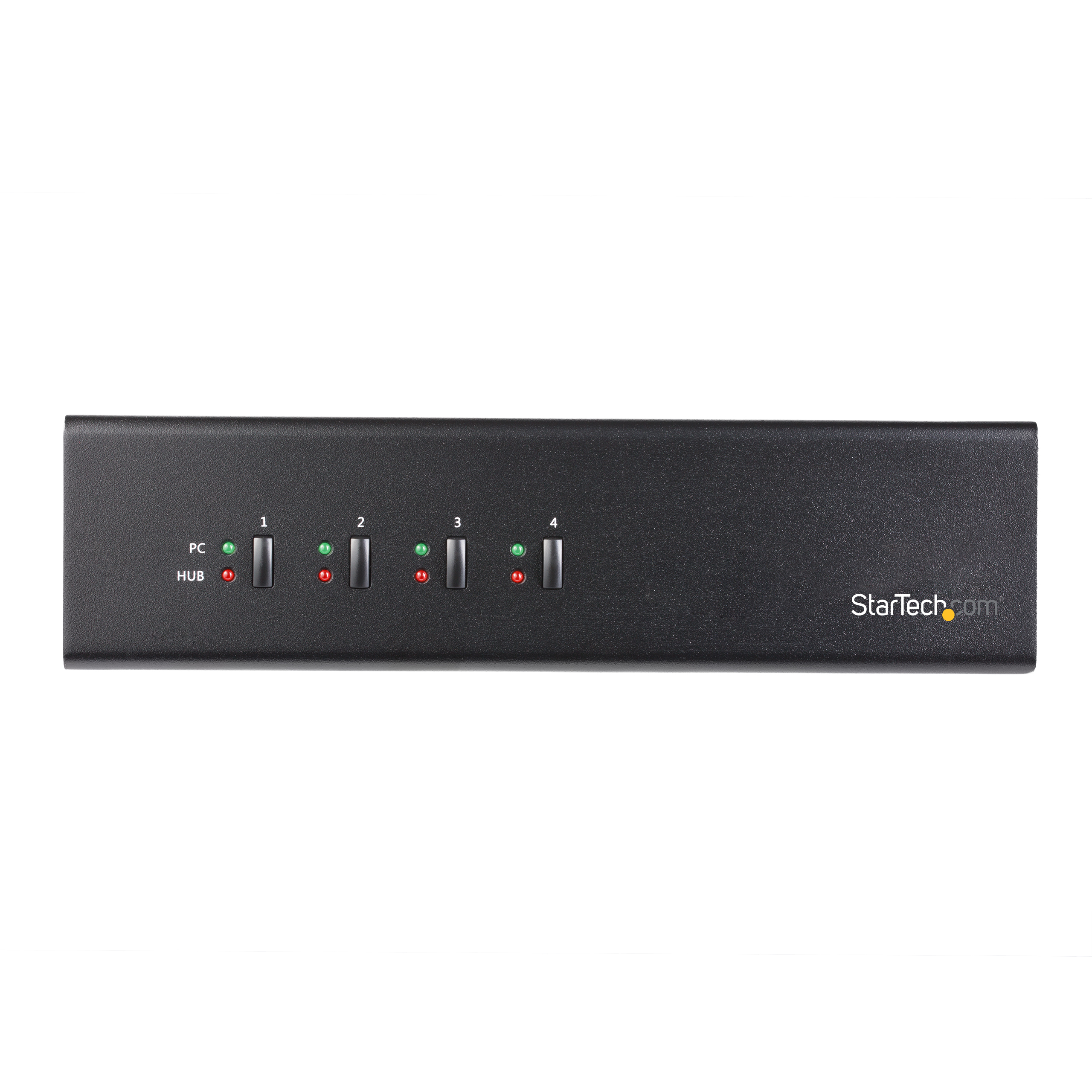

The front-panel push-buttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently, without the expense and clutter of extra keyboards, mice, and monitors. This 4-port dual-monitor dual-link DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.
